Complements of planar graphs

Task number: 4248

Show that the complement of a planar graph with 11 vertices cannot be planar, and find an example of the largest possible planar graph whose complement is planar.

  • Solution

    There are 55 edges on 11 vertices, so either \( G \) or \( \overline G \) would have to have at least 28 edges.

    However, planar graphs on 11 vertices have at most \( 3 {\cdot}11-6 \) edges, so a graph with 28 edges on 11 vertices cannot be planar.

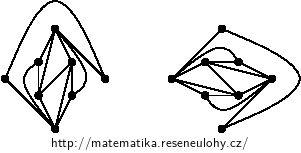

    An example of a planar graph on eight vertices, the complement of which is planar, is shown in the figure (the positions of the vertices are unchanged).

    planar self-complementary graph

    Note that the complement is even isomorphic to the original.

    Note: There are no planar graphs on the nine vertices that have a planar complement. See the article by Battle, Harary, Kodama from 1962: http://www.ams.org/journals/bull/1962-68-06/S0002-9904-1962-10850-7/S0002-9904-1962-10850-7.pdf

Difficulty level: Moderate task
Solution require uncommon idea
